HPE ProLiant DL360 Gen10 Server

Does your data centre need a secure, performance driven dense server that you can confidently deploy for virtualisation, database, or high-performance computing?

The HPE ProLiant DL360 Gen10 Server delivers security, agility and flexibility without compromise.




HPE ProLiant DL360 Gen10 - 8 Bay SFF 8x 2.5 Intel Dual Scalable Processor Server
Configure
From: £2,253.72

SFF Small Form Factor Drives

Hot-Swap Drives

3TB 24x 128GB RDIMM @2400MHz

8 Drives

Xeon Scalable Processor

HPE ProLiant DL360 Gen10 - 4 Bay LFF 4x 3.5 Intel Dual Scalable Processor Server
Configure
From: £2,279.28

LFF Large Form Factor Drives

Hot-Swap Drives

3TB 24x 128GB RDIMM @2400MHz

4 Drives

Xeon Scalable Processor

HPE ProLiant DL360 Gen10 - 10 Bay SFF 10x 2.5 NVME/SAS/SATA Drives Intel Dual Scalable Processor Server
Configure
From: £3,145.94

SFF Small Form Factor Drives

Hot-Swap Drives

3TB 24x 128GB RDIMM @2400MHz

10 Drives

Xeon Scalable Processor


Does your data centre need a secure, performance driven dense server that you can confidently deploy for virtualisation, database, or high-performance computing?

The HPE ProLiant DL360 Gen10 Server delivers security, agility and flexibility without compromise. It supports the Intel® Xeon® Scalable processor with up to a 71% performance gain and 27% increase in cores1, along with 2666 MT/s HPE DDR4 SmartMemory supporting up to 3.0 TB2 with an increase in performance of up to 66%3.

With the added performance that 12 NVDIMMs and 10 NVMe bring, the HPE ProLiant DL360 Gen10 means business. Deploy, update, monitor and maintain with ease by automating essential server life cycle management tasks with HPE OneView and HPE iLO 5. Deploy this 2P secure platform for diverse workloads in space constrained environments.

  • Innovative design with greater flexibility to mix and match storage within a single chassis and capacity to support most dynamic workloads.
  • HPE performance leadership with HPE Persistent Memory, which harnesses the speed of memory and combines it with the persistence of storage.
  • Protect, detect, and remove with built-in security features such as Silicon Root of Trust, Runtime Firmware Validation, and Secure Recovery.
  • Supports Intel® Xeon® Scalable processor with up to 28 cores and memory speeds of up to 2666 MT/s.

Industry-leading Performance with Versatile Compute

HPE ProLiant DL360 Gen10 Server supports industry-standard technology leveraging the Intel Xeon Scalable processor with up to 28 cores, 12G SAS and 3.0 TB of 2666 MT/s HPE DDR4 SmartMemory.

With support for up to 12 NVDIMMs per chassis and 2X capacity of first-generation HPE NVDIMMs, HPE ProLiant DL360 Gen10 Server delivers up to 192 GB per system.

Achieve greater capacity with flexible drive configuration options with up to 10 SFF and four LFF drives along with an option to support up to 10 NVMe PCIe SSDs delivers enhanced performance, capacity, and reliability to meet various customer segments and workload requirements at the right economics

HPE Persistent Memory, the world's first non-volatile DIMM (NVDIMM) optimised on HPE ProLiant5, offers up to 20X reduction in database restart time preserving maximum uptime.4

Innovative Design for Flexibility and Choice

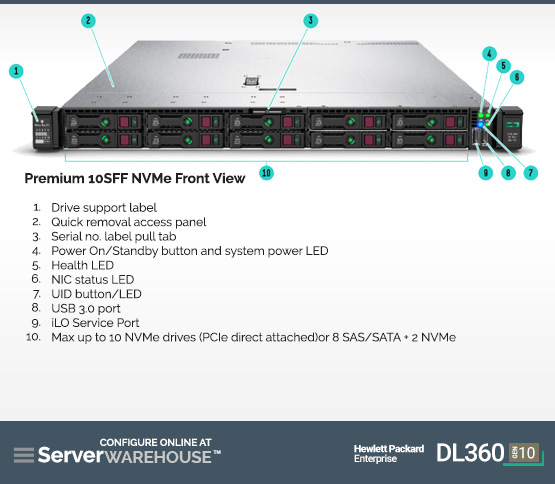

The premium 10 SFF NVMe chassis backplane provides the ability to mix and match SAS/SATA and NVMe within the same chassis along with 8 + 2 SFF and 4 LFF chassis that supports new uFF and M.2 storage options.

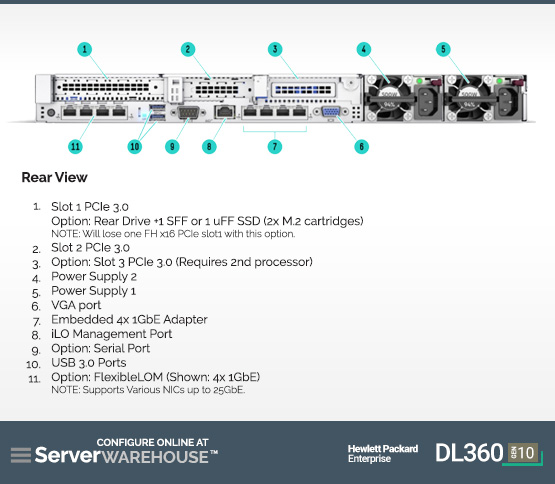

Embedded 4x 1GbE along with HPE FlexibleLOM or PCIe standup 1GbE, 10GbE, or 25GbE adapters provides flexibility of networking bandwidth and fabric so you can adapt and grow to changing business needs.

Unmatched expandability is packed in a dense 1U rack design with up to three PCIe 3.0 slots.

Security Innovations

HPE iLO 5 enables the world's most secure industry standard servers with HPE Silicon Root of Trust technology to protect your servers from attacks, detect potential intrusions and recover your essential server firmware securely.

Millions of lines of firmware code run before the server OS boots and with Runtime Firmware Verification, enabled by HPE iLO Advanced Premium Security Edition, the server firmware is checked every 24 hours verifying validity and credibility of essential system firmware.

Secure Recovery allows server firmware to roll back to the last known good state or factory settings after detection of compromised code.

Additional security options are available with Trusted Platform Module (TPM) to prevent unauthorised access to server and securely stores artifacts used to authenticate the server platforms while the Intrusion Detection Kit logs and alerts when the server hood is removed.

Industry-Leading Serviceability and Deployment

HPE ProLiant DL360 Gen10 Server comes with a complete set of services offered by HPE Pointnext, delivering confidence, reducing risk, and helping customers realise agility and stability.

Services from HPE Pointnext simplifies the stages of the IT journey. Advisory and Transformation Services professionals understand customer challenges and design an enhanced solution. Professional Services enables rapid deployment of solutions and Operational Services provides ongoing support.

Services provided under Operational Services include - HPE Flexible Capacity, HPE Datacenter Care, HPE Infrastructure Automation, HPE Campus Care, HPE Proactive Services and multi-vendor coverage.

HPE IT investment solutions help you transform to a digital business with IT economics that align to your business goals.

Technical Specifications:

Processor

  • Intel

Processor family

  • Intel® Xeon® Scalable 8100 series Intel® Xeon® Scalable 6100 series Intel® Xeon® Scalable 5100 series Intel® Xeon® Scalable 4100 series Intel® Xeon® Scalable 3100 series

Processor core available

  • 28 or 26 or 24 or 22 or 20 or 18 or 16 or 14 or 12 or 10 or 8 or 6 or 4, depending on model

Processor cache

  • 8.25 MB L3 11.00 MB L3 13.75 MB L3 16.50 MB L3 19.25 MB L3 22.00 MB L3 24.75 MB L3 27.50 MB L3 30.25 MB L3 33.00 MB L3 35.75 MB L3 38.50 MB L3

Processor speed

  • 3.6 GHz

Form factor

  • 1U

Power supply type

  • 2 Flex Slot

Expansion slots

  • 3, for detailed descriptions refer to the QuickSpecs

Maximum memory

  • 3.0 TB with 128 GB DDR4

Memory slots

  • 24 DIMM slots

Memory type

  • HPE DDR4 SmartMemory

Drive type

  • 4 LFF SAS/SATA/SSD 8 or 10 SFF SAS/SATA/SSD 10 premium SFF NVMe SAS/SATA/SSD 1 SFF or 1 Dual UFF rear drive optional depending on model

System fan features

  • Hot-plug redundant standard

Network controller

  • HPE 1 Gb 331i Ethernet adapter 4-ports per controller and/or optional HPE FlexibleLOM, depending on model

Storage controller

  • 1 of the following, depending on model HPE Smart Array P408i-a SR Gen10 Controller or HPE Smart Array P816i-a SR Gen10 Controller or HPE Smart Array E208i-a SR Gen10 Controller

Minimum dimensions (W x D x H)

43.46 x 70.7 x 4.29 cm

Weight

13.04 kg minimum 16.27 kg maximum

Infrastructure management

  • HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download) HPE iLO Advanced, HPE iLO Advanced Premium Security Edition and HPE OneView Advanced (require licenses)

Warranty

  • 3/3/3 - Server Warranty includes three years of parts, three years of labor, three years of onsite support coverage. Additional information regarding worldwide limited warranty and technical support is available at: http://h20564.www2.hpe.com/hpsc/wc/public/home. Additional HPE support and service coverage for your product can be purchased locally. For information on availability of service upgrades and the cost for these service upgrades, refer to the HPE website at http://www.hpe.com/support


Throughout our years of experience providing HPE quotations for customers, it became increasingly clear just how difficult it was to obtain a fast and accurate quote on a customised HPE server. This was a complaint expressed by many in this industry. The whole process was slow, frustrating and very outdated.

Our super-fast, one of a kind online configurator allows you configure your HPE ProLiant DL360 Gen10 server online, selecting from a huge range of configurable items to receive an immediate quote.

Designed to be very easy to use, our industry leading online configurator features all HPE quick spec catalogues, allowing you to configure online and get instant prices.

All orders are verified by our technical sales team, ensuring that your HPE ProLiant DL360 Gen10 Server is fully compatible. We have done the legwork so you don’t have to, making the entire process a breeze.

ServerWarehouse delivers totally customisable HPE ProLiant DL360 servers with a huge range of configuration options. This powerful, 1U rack server is configurable with Intel Xeon Scalable processors and offers both single processor and dual processor options.

Intel Xeon Scalable processors are available in four ranges; Bronze, Silver, Gold and Platinum.
Bronze processors are perfect for small businesses, as they are built to perform best with basic storage servers. The Silver processors is optimised for developing IT organisations, providing the speed and security necessary for your data centre.

Intel Xeon Gold processors deliver high level reliability, hardware-enhanced security and the high performance ideal for high intensity, demanding workloads. Intel Xeon Platinum processors provide what is quite possibly the very best performance in this industry for mission critical, AI, machine learning, cloud workloads and real time analytics. They also provide huge leaps in I/O, storage, memory and network technologies.

Intelligently designed, easily manageable and surprisingly expandable, the ProLiant DL360 Gen10 is a superb choice for businesses that require a lot of power.

The HPE’s ProLiant DL360 Gen10 manages to fit a huge range of features into a slim-line 1U chassis due to its well-thought out internal design. In addition to its support for Intel’s core-heavy Xeon Scalable processors, it has experienced a significant internal redesign which has allowed it to offer a significant choice of storage options. It features 24 DIMM slots and memory capacity of a huge 3TB.

A powerful server, which is well suited to rack dense applications that require significant processing horsepower. As the whole Xeon Scalable processor family is supported, the system can be customised for almost any workload.

HPE ProLiant DL360 Gen10 - 8 Bay SFF 8x 2.5

The HPE ProLiant DL360 Gen10 – 8 Bay SFF 8x 2.5” utilises hot-swap 2.5” drives for denser storage capabilities. 2.5” drives are more power efficient than their 3.5” counterparts.

This model supports dual processors and is powered by the 2nd Gen Intel Xeon Scalable family. It features 2x PCI Expansion slots and supports up to 24 modules of registered 2933Mhz DIMMs (RDIMMs) memory.

HPE ProLiant DL360 Gen10 - 4 Bay LFF 4x 3.5

The HPE ProLiant DL360 Gen10 – 4 Bay SFF 8x 3.5” supports 3.5” drives, which offer certain advantages over 2.5” drives. These include generally possessing higher capacity and being more cost-effective.

The HPE ProLiant DL360 Gen10 – 4 Bay SFF 8x 3.5” is a dual processor system powered by the 2nd Gen Intel Xeon Scalable processor family. It features 2x PCI Expansion slots and supports up to 24 modules of Registered 2933Mhz DIMMs (RDIMMs) Memory.

HPE ProLiant DL360 Gen10 - 10 Bay SFF 10x 2.5” NVME/SAS/SATA Drive

The HPE ProLiant DL360 Gen10 – 10 Bay SFF 10x 2.5” NVME/SAS/SATA, is a dual processor system powered by the Intel Xeon Scalable processor family. It supports up to 24 modules of Registered 2933Mhz DIMMs (RDIMMs) Memory and features 2x PCI Expansion slots.

This model supports 2.5” NVMe/SATA/SAS hard drives. Each storage protocol features their own unique advantages, the HPE ProLiant DL360 Gen10 – 10 Bay SFF 10x 2.5” NVME/SAS/SATA supports them all, giving you the choice to configure with the storage type that best fits your needs.
