HPE ProLiant DL80 Generation9 (Gen9)

The HPE ProLiant DL80 Gen9 Server is designed with affordable storage, networking and processor scalability, and manageability in a 2U server for cost conscious service provider and SMBs.

Apart from basic IT infrastructure workloads this server is ideal for running storage capacity intensive applications like cold storage, back-up due to compelling cost/GB that it offers.




HPE ProLiant DL80 Gen9 E5 v4 - 8 Bay LFF 8x 3.5
Configure
From: £1,234.91

LFF Large Form Factor Drives

Hot-Swap Drives

8 Drives

Xeon E5 2600 v4

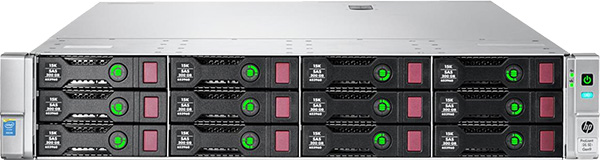

HPE ProLiant DL80 Gen9 E5 v4 - 12 Bay LFF 12x 3.5
Configure
From: £1,332.89

LFF Large Form Factor Drives

Hot-Swap Drives

12 Drives

Xeon E5 2600 v4

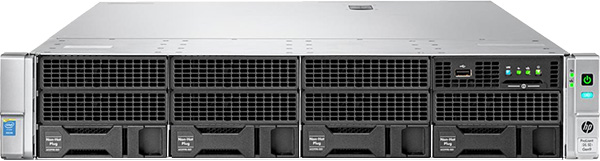

HPE ProLiant DL80 Gen9 E5 v4 - 4 Bay LFF 4x 3.5
Configure
From: £1,633.40

LFF Large Form Factor Drives

Fixed Drives

4 Drives

Xeon E5 2600 v4


Do you need an affordable storage server for capacity intensive applications? The HPE ProLiant DL80 Gen9 Server is designed with affordable storage, networking, processor scalability, and manageability in a 2U server for cost conscious service providers and small and medium businesses (SMBs).

Apart from basic IT infrastructure workloads this server is ideal for running storage capacity intensive applications like cold storage and back-up with its compelling cost/GB.

  • Intel® Xeon® E5-2600 v4 processor family offers unparalleled versatility across diverse workloads
  • HPE DDR4 SmartMemory 2400 MHz modules for faster performance with data-intensive application workloads
  • HPE Trusted Platform Module (TPM) 2.0 averts unauthorized access to servers and delivers enterprise level security to store artifacts used to authenticate the server platforms
  • 900W AC / 240VDC power supply for improved affordability
  • Increased capacity hard drives – Large Form Factor (LFF) with up to 10 TB capacity now bringing the DL80 maximum storage capacity to 120 TB SAS/SATA
  • 10GbE FlexFabric NICs providing seamless performance upgrade from 1GbE and the economies of 10GbaseT

Affordable Storage and IO Expandability for Service Providers and SMBs

The HPE ProLiant DL80 Gen9 Server provides ample storage capacity with up to (12) Large Form Factor (LFF) HPE SmartDrives, delivering optimal performance, capacity, and reliability to meet various customer segments and workload requirements at the right economics.

Up to (6) PCIe 3.0 riser slots to support one single-wide GPU or networking cards offering increased IO bandwidth and seamless expandability.

Comes standard with 2x1GbE and choice of HPE FlexibleLOM to provide you flexibility of networking bandwidth and fabric so you can adapt to changing business needs.

With support for Large Form Factor (LFF) hard disk drives (HDDs) with up to 10 TB capacity DL80 Gen9 offers maximum storage of up to 120 TB SAS/SATA.

Just Enough Performance for Basic IT Infrastructure Workloads

The HPE ProLiant DL80 Gen9 Server supports up to two (2) Intel® Xeon® processor E5-2600 v4 processors offering improved performance and efficiency.

HPE SmartMemory has the built-in intelligence to improve performance, reduce downtime and energy costs resulting in up to 14%1 better throughput performance and up to 37% lower power consumption with DDR4 memory.

Embedded SATA HPE Dynamic Smart Array B140i Controller for boot and data. Choice of HPE Smart Array Controllers with increased performance, data availability with 12 Gb/s SAS technology or HPE Smart HBAs with reliable high performance SAS connectivity capable of running HBA mode or simple RAID mode.

Agile Infrastructure Management for Accelerating IT Service Delivery

Included with the HPE ProLiant DL80 Gen9 Server is HPE OneView providing infrastructure management for automation simplicity across servers, storage and networking.

Online personalized dashboard for Converged Infrastructure (CI) health monitoring and support management with HPE Insight Online.

Configure in Unified Extensible Firmware Interface (UEFI) boot mode, provision local and remote with Intelligent Provisioning and Scripting Toolkits or HPE RESTful Interface Tool for increased flexibility.

Embedded management to deploy, monitor and support your server remotely, out of band with HPE Integrated Lights-Out (iLO).

Optimize firmware and driver updates and reduce downtime with Smart Update, consisting of HPE SUM (Smart Update Manager) and HPE SPP (Service Pack for ProLiant).

Energy Efficiency by Design

HPE ProLiant DL80 Gen9 Server with 80 PLUS gold certified entry-level redundant HPE Power Supplies provide up to 92% efficiency which combined with HPE power management features leads to reduction of power consumption and expense.

Improved ambient temperature standard with ASHRAE A32 helps customers reduce cooling expense.

Technical Specifications:

Processor family

  • Intel® Xeon® E5-2600 v3 product family
  • Intel® Xeon® E5-2600 v4 product family

Number of processors

  • 1 or 2

Processor core available

  • 14 or 12 or 10 or 8 or 6 or 4

Processor cache

  • 10MB LLC
  • 15MB LLC
  • 20MB LLC
  • 25MB LLC
  • 30MB LLC
  • 35MB LLC

Processor speed

  • 3GHz

Form factor (fully configured)

  • 2U

Form factor chassis

  • Rack

Power supply type

  • (2) Entry-Level

Expansion slots

  • (6) For detail descriptions reference the QuickSpecs

Memory, maximum

  • 256GB

Memory slots

  • 8 DIMM slots

Memory type

  • DDR4 SmartMemory

Memory protection features

  • Memory Online Spare Mode

Drive description

  • (12) LFF SAS/SATA/SSD
  • (8) LFF SAS/SATA/SSD
  • (4) LFF SAS/SATA/SSD

System fan features

  • Hot swap redundant optional

Graphic card

  • Up to 1 single width GPU supported

Network controller

  • 1Gb 361i Ethernet Adapter
  • Optional FlexibleLOM on riser
  • Depending on model

Storage controller

  • Dynamic Smart Array B140i
  • H240 Host Bus Adapter
  • Smart Array P440/4GB
  • Depending on model

Infrastructure management

  • iLO Management (standard), Intelligent Provisioning (standard), iLO Essentials(optional), iLO Scale-Out(optional) iLO Advanced (optional)

Warranty

  • 1/1/1 Server Warranty includes one year of parts, one year of labor, one year of onsite support coverage. Additional information regarding worldwide limited warranty and technical support is available at: www.hpe.com/services/support. Additional Hewlett Packard Enterprise support and service coverage for your product can be purchased locally. For information on availability of service upgrades and the cost for these service upgrades, refer to www.hpe.com/services/support
